Install Type Instructions
-
- Standard Installation
- No-drill Installation See Detail
(1).Within width 55 inches mounting only(2).Wooden Headraill:
(3).Alum. Headrail:
Composite Fabric Instructions
What is Composite Fabric
Composite fabric is a material made by bonding two or more different fabrics or layers together, often
combining textiles with films, foams, or membranes. This creates a single fabric with enhanced performance
and unique characteristics.
Composite Fabric naturally provides light-filtering performance, comparable to having a 90 gsm lining
(shading rate 60%-80%).
Why choose Composite Fabric
- Thicker material provides better insulation and temperature control.
- Neater and more structured appearance.
- Composite lining enhances light-blocking performance.
- More durable and long-lasting.
Roman Shade Styles Ideal for Composite Fabric
- Plain Fold
- Flat Fold
- Pleated Fold
- Soft Fold
Available Colors for Composite Fabric
- Lemon Collection: Snow White 1908-0, Beige White 1908-1, Ivory White 1908-2, Sand Beige 1908-3, Light Khaki 1908-4, Burlywood Birch 1908-5, Grey Beige 1908-6, Tapioca 1908-7
- Jasmine Collection: White J401-1, Ivory Beige J401-2, Oatmeal J401-3, Off White J401-7, Sand Beige J401-8, Birch J401-9
- Bluebell Collection: White B-1, Off white B-2, Beige B-3, Oatmeal B-4, Eucalyptus B-5
Min. Window Depth&Headrail Size
Roman Shade
- Standard Roman Shade
1. Min. Inside Mount Depth Requires 2 inches
2. Headrail Size: 3/4 inches H x 2 inches D
3. Valance height: 6 inches
4. Bracket Size: 1 1/2 inches H x 1 7/8 inches D
5. Pointed Screw Length: 1 3/16 inches
6. Flat Head Screw Length: 1 1/8 inches
- Top Down Bottom Up Shade
1. Min. Inside Mount Depth Requires 2 inches
2. Headrail Size: 3/4 inches H x 2 inches D
3. Valance height: 6 inches
4. Bracket Size: 1 1/2 inches H x 1 7/8 inches D
5. Pointed Screw Length: 1 3/16 inches
6. Flat Head Screw Length: 1 1/8 inches
Bamboo Shade
- Standard Shade
1. Min.Inside Mount Depth Requires 2 inches
2. Headrail Size: 5/8 inches H x 2 inches D
3. Valance height: 6 inches
4. Bracket Size: 1 1/2 inches H x 1 7/8 inches D
5. Pointed Screw Length: 1 3/16 inches
6. Flat Head Screw Length: 1 1/8 inches
- Top Down Bottom Up Shade
1. Min. Inside Mount Depth Requires 2 inches
2. Headrail Size: 3/4 inches H x 2 inches D
3. Valance height: 6 inches
4. Bracket Size: 1 1/2 inches H x 1 7/8 inches D
5. Pointed Screw Length: 1 3/16 inches
6. Flat Head Screw Length: 1 1/8 inches
Motorized Shade
1. Min.Inside Mount Depth Requires 2 1/2 inches
2. Headrail Size: 3/4 inches H x 2 1/2 inches D
3. Valance height: 6 inches
4. Bracket Size: 1 1/2 inches H x 1 7/8 inches D
5. Pointed Screw Length: 1 3/16 inches
6. Flat Head Screw Length: 1 1/8 inches
Mount Type Instructions
Inside Mount:
- Order Width = Actual Inside Window Width
- Order Height = Inside Window Height
- Recommended window frame depth: 2 inches
- Our factory will apply at least a 3/8" deduction from the total width. Please do not make any deductions on your end. This deduction applies to the headrail width, not the fabric width.
- lf the width has a 1/16" or 1/32" increment, round it down to the nearest 1/8"
Outside Mount:
- No minimum depth requirement
- Ordered Width= Outside Headrail Width
- Please add 4 to 6 inches to the measured width of the sash to avoid light gaps
- For height, add 4 inches to the measurement
Roman/Bamboo Shade Measurement Guide
Inside Mount
*For Roman and Bamboo Shades, the fabric may be slightly wider than
the headrail for better light blocking.
Width
Measure the inside width of window frame at the top(A), middle(B), and bottom(C).
For Roman Shades / Bamboo Shades / Roller Shades / Zebra Shades,
Order Width
= Smallest measurement - 3/8 inch
For Cellular Shades and Venetian Shades, Order Width = Smallest
measurement - 1/4 inch
*You need to make the deduction
from the actual window width. Shades are made to your
ordered size!
Length
Measure the inside height of window frame at the left, middle, and right. Take the largest measurement
as your
order length.
*Round each measurement down to the nearest 1/8 inch when ordering.
Minimum Window Frame Depth Requirements:
2 ½ inches for Roman shades / Roller Shades / Cellular Shades;
2 ¾inches for Bamboo Shades;
3 inches for Zebra Shades / Venetian Blinds;
4 inches for Motorized Shades.
*The minimum flush inside mount depth required for Roller Shades is 4 inches.
Outside Mount
Width
Order Width = Measure from frame outer edge to edge + Left
extension + Right extension (recommend 2-3 inches on each side)
Length
Order Length = Measure from frame top outer edge to bottom edge +
Mount height above frame (recommend 10–12 inches)
*Round each measurement down to the nearest 1/8 inch when ordering.
*For proper outside mount, ensure the moulding depth allows the shade to lie flat against the wall.
Input Measurement Instructions
Width Fraction & Length Fraction
- When measuring your window, if the dimensions are not whole inches, the extra fraction should be expressed in eighths of an inch. Please refer to the image below for reference.
-
As shown in the image:
The measurement shown is 21 1/8“, then select “1/8” for Width eights/Height eights.
Similarly, if the measurement is in 1/16“ or 1/32” increments, round to the nearest 1/8”.
Stack Height:
When fully raised, the shades have a minimum stack height of 7 inches, though this may vary depending on
the style, size, and fabric.
Lift Type Instructions
Cordless Lift System
- Easy Operation: Simply push or pull to adjust the shades, offering smooth, intuitive control.
- Versatility: Compatible with a range of window treatments, including honeycomb, Roman, and roller shades, to suit various styles.
- Durability: Crafted from high-quality materials and rigorously tested for dependable, long-lasting performance.
- Available Headrail Options: Alum. Headrail or Wooden Headrail
Motorzation (Click here to know more about motorzation shades)
- Easy Operation: With the push of a button, raise or lower your shades effortlessly—no need for manual cords or chains.
- Multi-Shade Control: Control multiple shades with a single remote, ideal for large spaces or rooms with multiple windows.
- Bass Motor: Moving to a new home? Simply take your No-Drill Shades with you and see if they fit your new windows—ideal for frequent movers.
- Available Headrail Options: Wooden Headrail
Corded Lift System
- Precise Control: The corded lift system provides exact height adjustment, allowing users to control light levels and privacy with ease.
- Durability: With fewer internal parts, the corded lift system is built to last longer, reducing the need for maintenance or replacement, and easily lifting larger, heavier shades.
- Sleek Appearance: Cords can be neatly secured with a cleat, creating a tidy look and enabling you to adjust multiple shades to the same height effortlessly.
- Available Headrail Options: Wooden Headrail
Fit Protection Guarantee Instructions
Best Seller
Shop Now →Free Shipping
Min. purchase of $280
Choose Any Booklets
Shop Now →Fit Protection Guarantee
Peace of mind for custom-made curtains & shades.
GUARANTEED TO FIT
Measuring windows is tricky. With FIT Protection (one per window treatment), we cover:
- ✓ Covers measurement mistakes
- No stress. No extra cost for a remake.
Here's how it works
1
Install
Please attempt to install the curtains you have received.
3
We Confirm
We'll review and confirm within 1-2 business days.
4
Free Remake Shipped
New curtain(s) will be produced and shipped to you for free.
Required Information for Request:
- Order number
- Product(s) requiring adjustment (including room label if any)
- Quantity
- Correct finished size(s)
Terms for Fit Protection
- ✓ The Fit Protection is valid only for that specific window treatment and cannot be transferred to any other one.
- ✓ Fit Protection cannot be bought after the order has been placed or once the product has been delivered.
- ✓ Fit Protection can only be used to adjust the size of the window treatment.
- ✓ Products covered by FIT Protection are eligible for only one size change.
Tips for Measuring Windows
Make sure your custom window treatments fit right the first time with these tips:
Measure fresh every time
Review product-specific guides
30-Day After-Sales Support
If Your Products is Defective
We accept return or replacement requests within 30 days of delivery when we've made an error—such as the wrong size, color, mount type, or a defective item.
If You're Unsatisfied with Your Products
And if you're not happy with your custom covering for any other reason within the first 30 days – you don't like the color, you need a different mount or lift style, changed your mind about the lining, etc. – If you'd like us to remake your product, we'll offer a 20% discount (based on your original order amount) in the form of a gift card.
Please see our Returns page for more details.Contact
support@viewtailorcurtains.com
1500 N GRANT ST, STE R,Denver, CO 80203, US
Lining Type Instructions
Recommended to You
Natural Lining ☆☆☆☆
-
Cotton 117 gsm:
- Made from 100% natural cotton
- 70%-85% shading with a soft and eco-friendly feel
-
Belgian Flax 100%:
- Crafted from 100% European flax
- European Flax® certification
- 70%-80% shading for a premium and sustainable option
Blackout Lining ☆☆☆☆☆
-
Premium Woven Blackout 350 gsm:
- Features a 80% polyester & 20% cotton blend
- Over 90% physical light blockage
- Physical blackout lining and no chemical coatings—ideal for moms and babies
Attention:
If you choose plain fold or flat fold style with a 150 gsm or
250 gsm blackout lining, tiny pinholes from the stitching may be
visible, as shown in the photo.
If you are concerned about pinholes in the
blackout lining, we recommend choosing the pleated fold style, which helps minimize this issue
and provides better light coverage.
-
plain fold：
-
flat fold：
Bamboo Shade Edge Instructions
How to Choose the Matching Edge Binding
Edging bindings are decorative fabric trims that enhance the style and elegance of bamboo shades. They add a polished and refined look to the shades while protecting them from damage, extending their lifespan.
We recommend adding edging for the Ramie Bamboo Collection in Ivory, Beige and Coconut, as the natural fibers of these fabrics can cause the edges to unravel over time.
Bamboo Shade Style Instructions
-
Standard Shade Style
- Clean and uncluttered, A smooth, seamless panel
- Description: Flat fold shades are designed so the bamboo slats form a single smooth panel when lowered, with no visible seams on the front. This showcases the natural beauty of bamboo with a seamless, continuous surface, as the surface remains flat and streamlined.
- Lift System Options: Corded, Cordless, Motorization
- Available Headrail Options: Aluminum, Wooden
- Look: Clean, uncluttered, natural, airy
- Best For: Living rooms, bedrooms, dining areas, home offices, or any space where a neat, serene, and cohesive look is desired.
-
Top Down & Bottom Up Style
- Flexible light control, privacy on demand.
- Description: These shades are constructed as two adjustable vertical sections, which can be raised from the bottom or lowered from the top, offering maximum control over light and privacy. They combine natural bamboo texture with interactive design, letting the room feel both structured and inviting.
- Lift System Options: Corded, Cordless, Motorization
- Available Headrail Options: Aluminum, Wooden
- Look: Functional, versatile, sophisticated, airy
- Best For: Living rooms, bedrooms, or spaces where adjustable light and privacy are important.
Product Warranty Instruction
1-Year Limited Warranty Free
Our Free 1-Year Limited Warranty comes standard with every residential purchase. This warranty is extended to you, the original purchaser, for the original product purchased only, and is non-transferable. The warranty begins from the delivery date shown in shipping records.
What Is Covered
This warranty covers any defects in materials, workmanship, and internal mechanisms under normal residential use for up to one (1) year, so long as the product is installed in accordance with our installation instructions.
- Parts: Replaceable parts include, but are not limited to, the bracket, safety buckle, operational cords and chains, and motorization components.
Up to 1 year: Parts replaced at no charge. - Fabric and Slats: Coverage for fabric tears or defects, fabric detachment from slats, and warped or broken slats.
Up to 1 year: Product remade or replaced at no charge. - Internal Mechanism: Product not raising/lowering or loss of tension.
Up to 1 year: Product remade at no charge.
What's Not Covered
- Variations in texture, weave, or color of natural materials, and slight warping in wood products.
- Improper installation, operation, or cleaning.
- Normal wear, fading, or aging over time.
- Excessive exposure to heat, sunlight, or moisture.
- Damage caused by children, pets, or insects.
- Alteration/Modification of any kind.
What We Will Do
- Repair or Replace: Should your product be confirmed defective, VIEWTAILOR will, at its sole discretion, either repair or replace the product free of charge, or offer an alternative solution deemed appropriate.
- Product Discontinuation: If a replacement is required for a discontinued product still under warranty, we will provide a substitute that closely matches the original. For multi-shade orders, only the defective item will be addressed. Every effort will be made to match the original specifications.
*This warranty supersedes all other warranties, whether written or oral. We shall not be held liable for any incidental or consequential damages arising from product defects or breach of this warranty. We reserve the right to inspect any part or component before providing a replacement. To process a warranty claim, proof of purchase (receipt, invoice, or payment record) and photos or videos showing the issue must be provided.
The exclusion or limitation of incidental or consequential damages may not apply in all states, as laws vary by location. This warranty grants you specific legal rights, and you may have additional rights depending on your state.
3-Year Limited Warranty
For an upgrade fee, our 3-Year Limited Warranty includes the same coverage as the 1-Year Limited Warranty and lasts two years longer for peace of mind!
This warranty is extended to you, the original purchaser, for the original product purchased only, and is non-transferable. The warranty begins from the delivery date shown in shipping records.
What Is Covered
This warranty covers any defects in materials, workmanship, and internal mechanisms under normal residential use for up to three (3) years, so long as the product is installed in accordance with our installation instructions.
- Parts: Replaceable parts include, but are not limited to, the bracket, safety buckle, operational cords and chains, and motorization components.
Up to 3 years: Parts replaced at no charge. - Fabric and Slats: Coverage for fabric tears or defects, fabric detachment from slats, and warped or broken slats.
Up to 3 years: Product remade or replaced at no charge. - Internal Mechanism: Product not raising/lowering or loss of tension.
Up to 3 years: Product remade at no charge.
What's Not Covered
- Variations in texture, weave, or color of natural materials, and slight warping in wood products.
- Improper installation, operation, or cleaning.
- Normal wear, fading, or aging over time.
- Excessive exposure to heat, sunlight, or moisture.
- Damage caused by children, pets, or insects.
- Alteration/Modification of any kind.
What We Will Do
- Repair or Replace: Should your product be confirmed defective, VIEWTAILOR will, at its sole discretion, either repair or replace the product at no charge to you.
- Product Discontinuation: If a replacement is required for a discontinued product still under warranty, we will provide a substitute that closely matches the original. For multi-shade orders, only the defective item will be addressed. Every effort will be made to match the original specifications.
*This warranty supersedes all other warranties, whether written or oral. We shall not be held liable for any incidental or consequential damages arising from product defects or breach of this warranty. We reserve the right to inspect any part or component before providing a replacement. To request repair or replacement, proof of purchase (receipt, invoice, or payment record) and photos or videos showing the issue must be provided.
The exclusion or limitation of incidental or consequential damages may not apply in all states, as laws vary by location. This warranty grants you specific legal rights, and you may have additional rights depending on your state.
5-Year Limited Warranty
For an upgrade fee, our 3-Year Limited Warranty includes the same coverage as the 1-Year Limited Warranty and lasts two years longer for peace of mind!
This warranty is extended to you, the original purchaser, for the original product purchased only, and is non-transferable. The warranty begins from the delivery date shown in shipping records.
What Is Covered
This warranty covers any defects in materials, workmanship, and internal mechanisms under normal residential use for up to three (3) years, so long as the product is installed in accordance with our installation instructions.
- Parts: Replaceable parts include, but are not limited to, the bracket, safety buckle, operational cords and chains, and motorization components.
Up to 3 years: Parts replaced at no charge. - Fabric and Slats: Coverage for fabric tears or defects, fabric detachment from slats, and warped or broken slats.
Up to 3 years: Product remade or replaced at no charge. - Internal Mechanism: Product not raising/lowering or loss of tension.
Up to 3 years: Product remade at no charge.
What's Not Covered
- Variations in texture, weave, or color of natural materials, and slight warping in wood products.
- Improper installation, operation, or cleaning.
- Normal wear, fading, or aging over time.
- Excessive exposure to heat, sunlight, or moisture.
- Damage caused by children, pets, or insects.
- Alteration/Modification of any kind.
What We Will Do
- Repair or Replace: Should your product be confirmed defective, VIEWTAILOR will, at its sole discretion, either repair or replace the product at no charge to you.
- Product Discontinuation: If a replacement is required for a discontinued product still under warranty, we will provide a substitute that closely matches the original. For multi-shade orders, only the defective item will be addressed. Every effort will be made to match the original specifications.
*This warranty supersedes all other warranties, whether written or oral. We shall not be held liable for any incidental or consequential damages arising from product defects or breach of this warranty. We reserve the right to inspect any part or component before providing a replacement. To request repair or replacement, proof of purchase (receipt, invoice, or payment record) and photos or videos showing the issue must be provided.
The exclusion or limitation of incidental or consequential damages may not apply in all states, as laws vary by location. This warranty grants you specific legal rights, and you may have additional rights depending on your state.
Lifetime Limited Warranty
For a premium upgrade fee, our Lifetime Limited Warranty provides coverage for the lifetime of your product, offering long-term peace of mind.
This warranty is extended to you, the original purchaser, for the original product purchased only, and is non-transferable. The warranty begins from the delivery date shown in shipping records.
What Is Covered
This warranty covers any defects in materials, workmanship, and internal mechanisms under normal residential use for life time, so long as the product is installed in accordance with our installation instructions.
- Parts: Replaceable parts include, but are not limited to, the bracket, safety buckle, operational cords and chains, and motorization components.
- Fabric and Slats: Coverage for fabric tears or defects, fabric detachment from slats, warped, broken slats.
- Internal Mechanism: Product not raising/lowering or loss of tension.
What's Not Covered
- Variations in texture, weave, or color of natural materials, and slight warping in wood products.
- Improper installation, operation, or cleaning.
- Damage caused by children, pets, or insects.
- Alteration/Modification of any kind.
What We Will Do
- Repair or Replace: Should your product be confirmed defective, VIEWTAILOR will, at its discretion, either repair or replace the product at no charge to you.
- Product Discontinuation: If a replacement is required for a discontinued product still under warranty, we will provide a substitute that closely matches the original. For multi-shade orders, only the defective item will be addressed. Every effort will be made to match the original specifications.
*This warranty supersedes all other warranties, whether written or oral. We shall not be held liable for any incidental or consequential damages arising from product defects or breach of this warranty. We reserve the right to inspect any part or component before providing a replacement. To request repair or replacement, proof of purchase (receipt, invoice, or payment record) and photos or videos showing the issue must be provided.
The exclusion or limitation of incidental or consequential damages may not apply in all states, as laws vary by location. This warranty grants you specific legal rights, and you may have additional rights depending on your state.
Header GuideLines
Pinch Pleat (Hooks Included)
- Known as double pinch pleat
- Comes in 2x fullness
- Adjustable plastic pin hooks (3 1/2 inches) included
- Side return: 2 inches
- Works for the track, traverse rod, channel rod, and rod with rings.
Tailor Pleat (Hooks Included)
- Known as double tailor pleat
- Comes in 2x fullness
- Adjustable plastic pin hooks (3 1/2 inches) included
- Side return: 2 inches
- Works for the track, traverse rod, channel rod, and rod with rings.
French Pleat (Hooks Included)
- Known as double french pleat. The pleats are strategically positioned slightly lower than traditional pinch pleats.
- Comes in 2x fullness
- S-shaped metal pin hooks and adjustable plastic hooks (4 inches) included
- Headband Height: 3 15/16 inches
- Side return: 2 inches
- Works for the track, traverse rod, channel rod, and rod with rings
Triple Pleat (Hooks Included)
- Known as triple pinch pleat
- Comes in 2.3x fullness
- Adjustable plastic pin hooks (3 1/2 inches) included
- Side return: 2 inches
- Works for track, traverse rod, channel rod, and rod with rings
Triple Tailor Pleat (Hooks Included)
- Comes in 2.3x fullness
- Adjustable plastic pin hooks (3 1/2 inches) included
- Side return: 2 inches
- Works for track, traverse rod, channel rod, and rod with rings
Triple French Pleat (Hooks Included)
- The pleats are strategically positioned slightly lower than traditional pinch pleats.
- Comes in 2.3x fullness
- S-shaped metal pin hooks and adjustable plastic hooks (4 inches) included
- Headband Height: 3 15/16 inches
- Side return: 2 inches
- Works for the track, traverse rod, channel rod, and rod with rings
Pinch Pleat with Back Tab (Hooks Included)
- A classic pleat style with back tab
- Comes in 2x fullness
- Adjustable plastic pin hooks (3 1/2 inches) included
- Side return: 2 inches
- Tab height: 3 1/8 inches, fitting for rods ≤ 1 1/2 inches in diameter
*Pay attention to height measurement due to the 2 different ways of hanging.
*Back tab style cannot be hung on tracks.
Goblet (Hooks Included)
- Comes in 2x fullness
- S-shaped metal pin hooks included
- Pleat space: 5 1/2 inches
- Goblet height: 3 1/2 inches
- Works for track, traverse rod, channel rod, and rod with rings
Inverted Box Pleat (Hooks Included)
- Fabric is folded inward from both sides, meeting at the center to form an inverted box pleat.
- Comes in 2x fullness
- S-shaped metal pin hooks included
- Pleat space apart: 5 inches.
- Works for rods with rings and track.
Header GuideLines
Grommet
Available in four colors: Antique Bronze, Aluminum, Nickel, Black (only for Heck Curtains).
- Inside diameter: 1 5/8 inches
- Outside diameter: 2 1/4 inches
- 6 grommets for 42 in wide, 8 for 50 in, 10 for 72 in, 12 for 84 in, 14 for 100 in, 16 for 120 in, 22 for 150 in, 26 for 180 in
- Works for curtain rods or tracks with roller hooks
Header GuideLines
4-in-1 (Hooks Included)
- Versatile 4-in-1 construction
Hook Belt: Hang with metal pin hooks (included).
Clip Ring: Hang with clip rings (not included).
Rod Pocket: Hang with a rod pocket for a bunched-like look.
Back Tab: Hang with the back tab for pleated-like look.
- Metal pin hook size: 3 inches. 6 hooks per 40-inch width
- Side hem: 1 inch
- Bottom hem: 4 inches
- Works for rods with rings, rods with clip rings and poles
*Pay attention to height measurement due to the different ways of hanging.
Flat Hook (Hooks Included)
- Adjustable plastic hooks (3 inches) included
- Side hem: 1 inch
- Bottom hem: 4 inches
- Works for rods with rings.
- 6 pin hooks per 40-inch width
Tab Top
- Tab height: 4 inches
- Side hem: 1 inch
- Bottom hem: 4 inches
- Works for rods
Rod Pocket
- Pocket height: 3 inches
- Side hem: 1 inch
- Bottom hem: 3 1/8 inches
- Suitable for rods ≤ 1 1/2 inches in diameter or rods with clip rings
Back Tab
- Tab height: 4 inches
- Pocket height: 3 inches
- Side hem: 1 inch
- Bottom hem: 3 1/8 inches
- Suitable for rods ≤ 1 1/2 inches in diameter or rods with clip rings
Drape Mearsurement GuideLines
Single Panel Width
The panel width is measured from the leftmost pleat to the rightmost pleat when the curtain is fully extended.
Rod Installed
Single Panel Width = Rod Track Full Length / Panel Quantity
Single Panel Length = Measure from the rod ring eyelet or track runner eyelet to the floor + Bottom
Bottom Measurement
- 1 Inch above Floor: -1"
- Break on Floor: 0
- 1 Inch Puddle on Floor: +1"
For more puddling, add a longer bottom.
Rod Not Installed
Single Panel Width = (Window Frame Width + Left Extension + Right Extension (recommend 6-15 inches each side)) / Panel Quantity
Single Panel Length = Measure from window frame top to floor + rod ring eyelet or track runner eyelet to frame top (recommend 6-8 inches) + Bottom
Bottom Measurement
- 1 Inch above Floor: -1"
- Break on Floor: 0
- 1 Inch Puddle on Floor: +1"
For more puddling, add a longer bottom.
*Final rod/track installation should be based on your actual space and functional needs.
Drapery Lining Type GuideLines
Unlined
Curtains without any lining, allowing full natural light to filter through the fabric.
- Best for sheer curtains or functional blackout curtains (e.g. Atlanta, Regal, Lila collections).
Privacy (90 GSM)
Specification
- Material: 100% polyester microfiber
- Weight: 90 gsm
- Color: White
- Light block: 60%-70%
*The final shading coefficient correlates with the base fabric's light-blocking capacity.
Privacy (117 GSM)
Specification
- Material: 100% cotton
- Weight: 117 gsm, lightweight
- Color: white
- Light block: 60%-70%
*The final shading coefficient correlates with the base fabric's light-blocking capacity.
Room Darkening (140 GSM)
Specification
- Material: 100% polyester
- Weight: 140 gsm, midweight
- Color: white
- Light block: 70%-80%
*The final shading coefficient correlates with the base fabric's light-blocking capacity.
Room Darkening (220 GSM)
Specification
- Material: polyester, triple-weave technique
- Weight: 220 gsm, heavyweight
- Color: greyish white
- Light block: 90%-95%
*The final shading coefficient correlates with the base fabric's light-blocking capacity.
*For light-colored curtains, the lining may subtly affect the overall color appearance.
Blackout (150 GSM)
Specification
- Material: Microfiber with 2-pass foam
- Weight: 150 gsm
- Color: greyish white
- Light block: 100%
*Wipe clean
*For light-colored curtains, the lining may subtly affect the overall color appearance.
*Black stitching on curtain headers may caused by needle friction melting the blackout coating, less visible after hanging.
Blackout Thermal (250 GSM)
Designed for maximum insulation, helping to reduce energy costs by blocking heat transfer.
Specification
- Material: Microfiber with 3-pass foam
- Weight: 250 gsm
- Color: white
- Light block: 100%
*Wipe clean
*Black stitching on curtain headers may caused by needle friction melting the blackout coating, less visible after hanging.
Interlining - Insulation Room Darkening Combo
Designed for enhanced insulation, gentle light blocking, and added fabric structure.
Specification
- Material: 100% cotton privacy lining + double-sided flannel interlining
- Weight: 282 gsm (117+165)
- Light block: 70%
*The final shading coefficient correlates with the base fabric's light-blocking capacity.
Interlining - Insulation Blackout Thermal Combo
Maximum light control, insulation, and noise reduction—ideal for total light control, bedrooms, nurseries, and media rooms.
Specification
- Material: 2-pass foam blackout lining + double-sided flannel interlining
- Weight: 315 gsm (150+165)
- Light block: 100%
Same Color Liner
Refers to using the identical curtain fabric as the back liner, creating uniform color and material on both sides.
- Ideal for room divider
- The final shading coefficient correlates with the base fabric's light-blocking capacity
Drape Mearsurement GuideLines
Drape Memory Trianing
Utilizing high-temperature pressing, this treatment helps the fabric maintain a consistent and structured appearance, ensuring that the pleats or folds stay in place.
Size Limitations
- Option 1: Width ≤ 236 inches, Height ≤ 145 inches
- Option 2: Width ≤ 160 inches, Height ≤ 255 inches
Please ensure your custom size falls within one of the above ranges. If your size exceeds these limits, contact customer service to confirm availability.
Header Limitations
- Header styles not supported: inverted box pleated, rod pocket, grommet, back tape, flat hooks, 4 in 1, tab top and ripple fold
Customizable Options

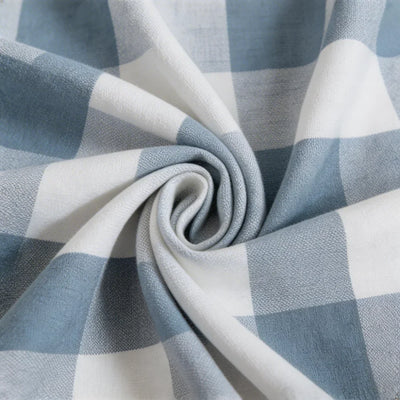

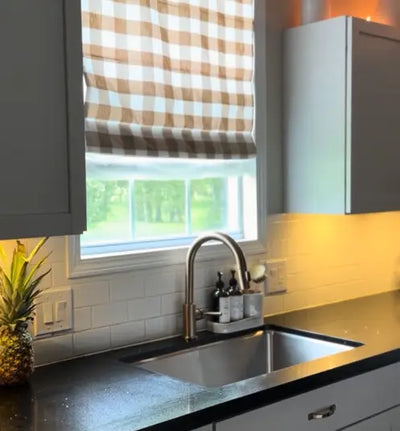

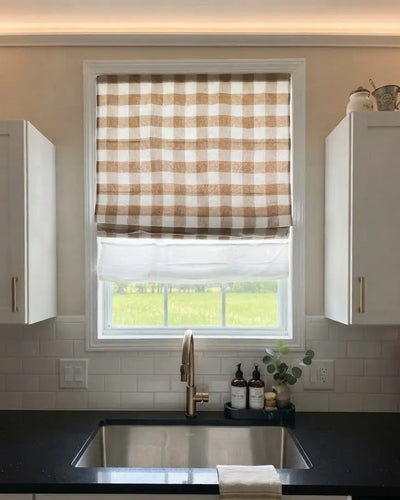

Shoreline Cotton Grid Roman Shade Flat Fold
Made to Order
25% Off code: VTFIRST2026-05-20T00:00:48-06:00
Code Copied
Copy Failed
- Regular price
- $69.99 USD
- Sale price
- $69.99 USD
- Regular price
-
- Unit price
- / per
Shipping calculated at checkout.
Curtain Measurement Guide
How to Measure for Pleated Curtains
Getting the right measurements is essential for a perfect fit. Follow these simple steps:
1
Measure Your Width
Measure the width of your window or rod. For full coverage, multiply by 1.5 to 2 times for gathered curtains.
2
Measure Your Drop
Decide where you want your curtains to fall - windowsill, floor, or puddling on the floor.
3
Account for Header Style
Add extra length for your header style. Tab top curtains need additional length for the tabs.
Width Types Explained
Single Panel Width
Width of one curtain panel
Total Width
Combined width of both panels
Pro Tip: Always measure twice to ensure accuracy. Round to the nearest inch for best results.
Common Measurement Mistakes to Avoid
- Not accounting for the curtain rod or track width
- Forgetting to measure at multiple points (width and drop can vary)
- Not considering the header style when measuring length
- Ordering curtains that are too narrow for adequate gathering
Frequently Asked Questions
How do I know if I need inside or outside mount?
Inside mount curtains fit within the window frame, while outside mount curtains hang from above or on the wall. Outside mount is more common for pleated curtains.
Should my curtains touch the floor?
This depends on your preference. Floor-length curtains create a clean, modern look. Slightly puddling curtains add a more relaxed, luxurious feel.
How wide should my curtains be?
For proper fullness, your total curtain width should be 1.5 to 2 times your window width. This ensures beautiful gathering when closed.
Product Details & Warranty
Warranty Coverage
We stand behind the quality of our products. All VIEWTAILOR curtains come with comprehensive warranty coverage:
Workmanship Guarantee: 3-year warranty on all custom-made curtains covering defects in craftsmanship and materials.
Our warranty covers:
- Defects in stitching and seam construction
- Hardware failures (grommets, rings, rods)
- Fabric defects unrelated to normal wear
- Color fading under normal conditions
Return Policy
We want you to be completely satisfied with your purchase. If you're not happy with your curtains, we offer a hassle-free return process:
1
Contact Us
Reach out to our customer service team within 30 days of delivery to initiate a return.
2
Return Authorization
We'll provide you with a return authorization number and shipping instructions.
3
Ship Back
Send the curtains back in their original packaging. Custom sizes may be subject to a restocking fee.
Note: Custom-made curtains that are returned due to incorrect measurements provided by the customer may not be eligible for a full refund. Please double-check your measurements before ordering.
Shipping Information
All orders are carefully packaged and shipped with care:
- Production Time: 6-8 business days for tailoring in our factory
- Express Delivery: 3-5 business days via DHL or UPS
- Total Delivery: Most orders arrive within 9-13 business days
- Tracking: You'll receive tracking information once your order ships
Free Shipping: We offer free express shipping on all orders over $150!
Care Instructions
To maintain the beauty and longevity of your curtains:
- Machine wash cold on gentle cycle or hand wash
- Use mild detergent without bleach
- Tumble dry on low heat or hang dry
- Iron on low heat if needed
- Spot clean stains immediately for best results
Damage & Defects
If your order arrives damaged or defective:
Report Within 48 Hours: Please inspect your order upon arrival and contact us within 48 hours if you notice any damage.
We'll need:
- Photos of the damaged packaging
- Photos showing the defect or damage
- Your order number
- Description of the issue
We'll work with you to provide a replacement, repair, or refund as appropriate.
Need Help?
Our customer service team is here to assist you:
📧
Email: support@viewtailorcurtains.com
📞
Phone: 1-800-VIEWTAILOR
⏰
Hours: Mon-Fri 9AM-6PM EST
Loading...
Description
Care
Note
Shipping
Return & Refund
- Flat Fold: Flat fold shades are designed so the fabric lies in a single smooth panel when lowered, with no obvious seams on the front. This makes them ideal for a simple look, because the fabric surface stays flat and clean.
- Lift System Options: Corded, Cordless, Motorization
- Available Headrial Options:Aluminum, Wooden
- Lightweight Elegance: The premium fabric allows natural light to filter through softly, infusing any space with warmth and charm.
- Natural, sophisticated look: Its natural texture and subtle sheen bring understated sophistication, perfect for modern, minimalist, or classic interiors.
-
Tips: Due to handmade craftsmanship, a 3/8 inch dimensional error may exist.
Slight color differences may occur due to different dye batches.Roman shades come with necessary hardware.
Bring a touch of timeless charm to your space with the ViewTailor Shoreline Collection.Large Grids - bold and structured, opens up the space. Made from a soft, durable blend of 70% cotton and 30% polyester, these Roman shades look and feel effortlessly elegant.
- Material:70% cotton 30% polyester
- Weight:240g/m²
- Stack Height: When raised,the shade folds neatly at the top, forming a stack about the height of 3–4 cozy books— keeping a clean, stylish look.
- Blot spills gently.
- Dry clean preferred.
- Air-dry.
- Iron damp if needed.
- Avoid hot water.
- Do not tamper with the lift mechanism behind the shade—doing so may damage it and prevent it from working properly.
- For inside mount,our factory will deduct 3/8 inch from the width you provide when processing your order to ensure a proper fit within your window frame.
- Operate cords or lift mechanisms carefully to maintain smooth folds.
- Because these shades are made from natural fabrics, colors may vary from swatches and may fade slightly over time.
- For washing or cleaning, follow fabric-specific instructions.
- Handcrafted with care. Your order will arrive in 7–10 business days.
- Occasionally, unexpected delays may happen,but we always strive to get your order to you as quickly as possible.
- Thank you for your patience and understanding—every shade is made with care just for you.
- All our roman shades are made-to-order, so we generally cannot accept returns.
- We do accept returns in reasonable cases.
- We recommend ordering fabric swatches first to ensure your expectations are met.
- Please double-check your measurements before placing your order.
- View our full complete RETURN & REFUND POLICY here.
Natural Linen Texture
Breathable linen fabric with a soft, natural handfeel that looks relaxed and refined in everyday spaces.
Balanced Light Control
Gently filters daylight while maintaining privacy, creating a calm and comfortable indoor atmosphere.
Thoughtful Construction
Carefully finished details ensure smooth drape, clean lines, and a well-balanced look once hung.
Made to Fit Your Space
Designed to suit different rooms and window styles, with options that feel considered rather than overdesigned.
Need Help Deciding? Get Fabric Swatches!
Carefully chosen for their exquisite beauty, texture, and light-filtering qualities, these fabrics possess the ability to effortlessly elevate a room, gracing it from floor to ceiling.
How to Choose Hanging Header Style?
Choosing the right curtain heading styles is essential for enhancing your room's aesthetics and functionality. Your decision should align with your decor theme, practical...
Free Shipping Over $280
First Order 25% OFF
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
VTFIRST
Code Copied
Copy Failed
How to Choose the Perfect Blackout
CurtainsBlackout Effect Percentage Across Various Fabric Types
| Unlined | Privacy | Room Darkening | Blackout | Thermal | ||
|---|---|---|---|---|---|---|
| 60% | 60% | 70% | 75% | 80% | 100% | 100% |
FREQUENTLY ASKED ASKED QUESTIONS
Yes. Our curtains are designed to work across different spaces. You can choose lighter options for shared areas and enhanced privacy or blackout linings for bedrooms.
Light control depends on the lining you select. Unlined curtains softly filter light, while blackout and thermal linings are designed to significantly reduce or fully block light.
We recommend measuring your window width and height carefully before ordering. Detailed measuring guides are available to help ensure the best fit for your space.
Yes. All header styles are designed for straightforward installation on standard curtain rods, with clear hanging instructions included.
Linen curtains are best maintained with gentle care. We recommend light steaming or professional dry cleaning to preserve the fabric’s texture and drape.
We Accept:
© 2026 viewtailor. All Rights Reserved.
- Choosing a selection results in a full page refresh.
Powered by Omni Themes
★ Reviews
Write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
